DIGITAL FILE BUNDLE - Final Drive Mounting Plate

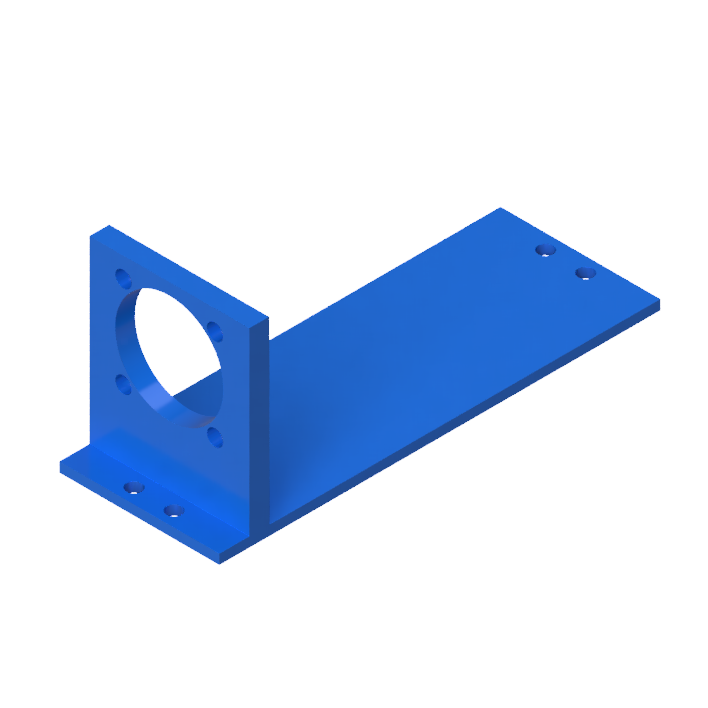

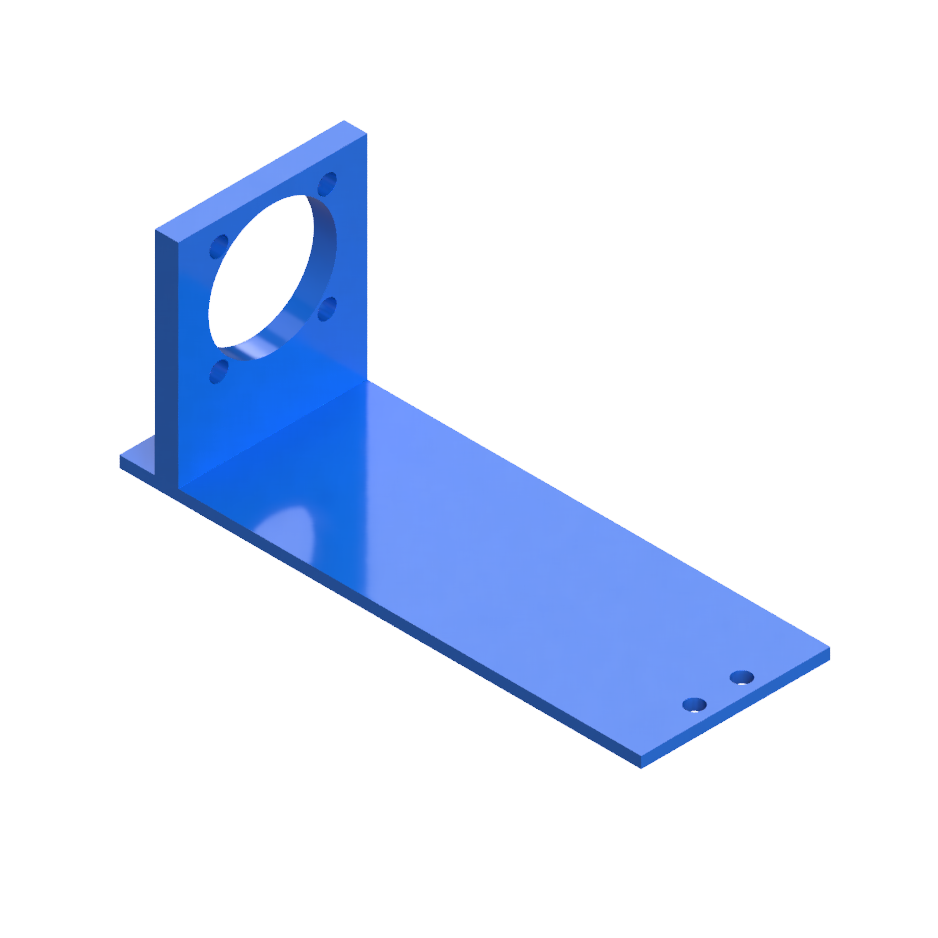

The Workshop Rebuild Final Drive Mounting Plate is a dedicated subassembly derived from the Engine Mounting Plate system. It is designed to attach directly to the base assembly of the Engine Mounting Stand, creating a stable fixture for working on BMW final drives.

This fixture allows you to:

● Securely disassemble BMW /5, /6 and /7 model final drives without movement or instability
● Safely assemble and service BMW /5, /6 and /7 model final drives while keeping the unit firmly supported

By holding the final drive in a rigid and controlled position, the mounting plate makes servicing, inspection, and rebuilding significantly easier and more precise.

What You’re Purchasing

A Digital file bundle that includes:

● 1 × Read Me Document (PDF)

● 2 × Detailed Technical Drawings (PDF)

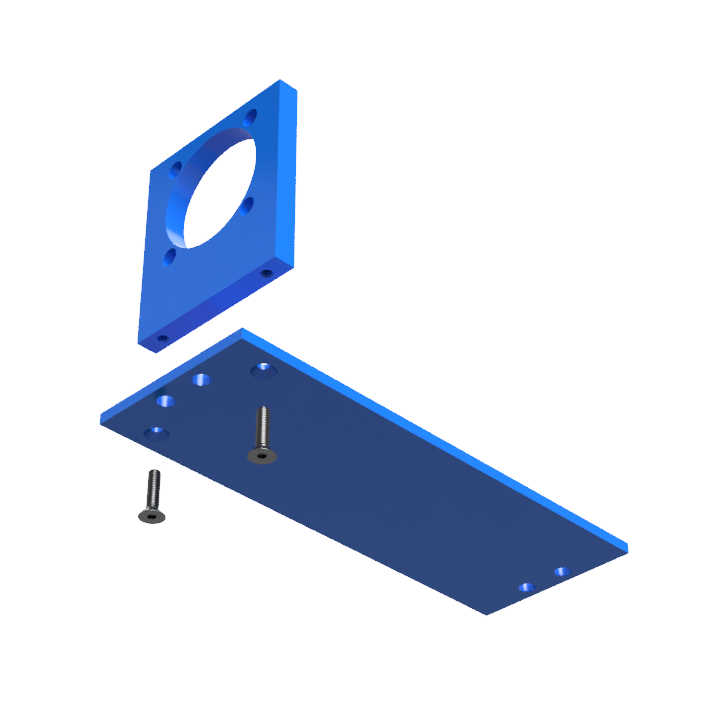

● 2 × DXF Files for The Individual Parts (For Laser Cutting purposes)

● Digital reference images with a Hardware List

Both the Technical Drawings or DXF files can be used to produce this assembly, either by machining or with the help of a CNC Laser Cutting machine.

Designed For

● BMW /5 Model Final Drives

● BMW /6 Model Final Drives

● BMW /7 Model Final Drives

Important

● ✔ This is a digital download only

● ✔ The Engine Mounting Stand is NOT included

● ✔ No physical parts will be shipped

● ✔ Hardware is NOT included

● ✔ Files are designed specifically for the BMW Airhead Final Drives

● ✔ Basic knowledge of Technical Drawings and DXF Files are required

If you have a similar final drive and require a custom size, please contact us

Disclaimer:

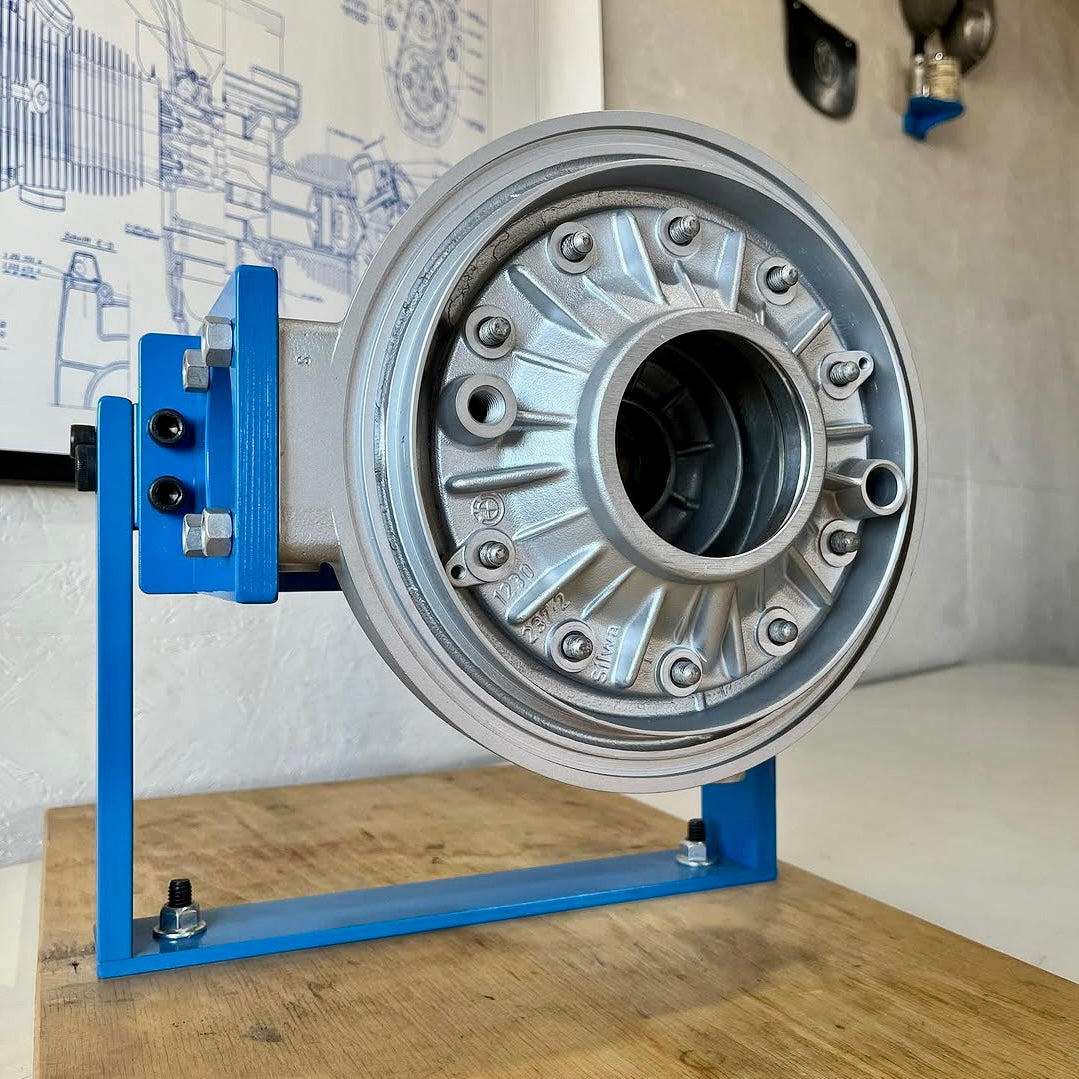

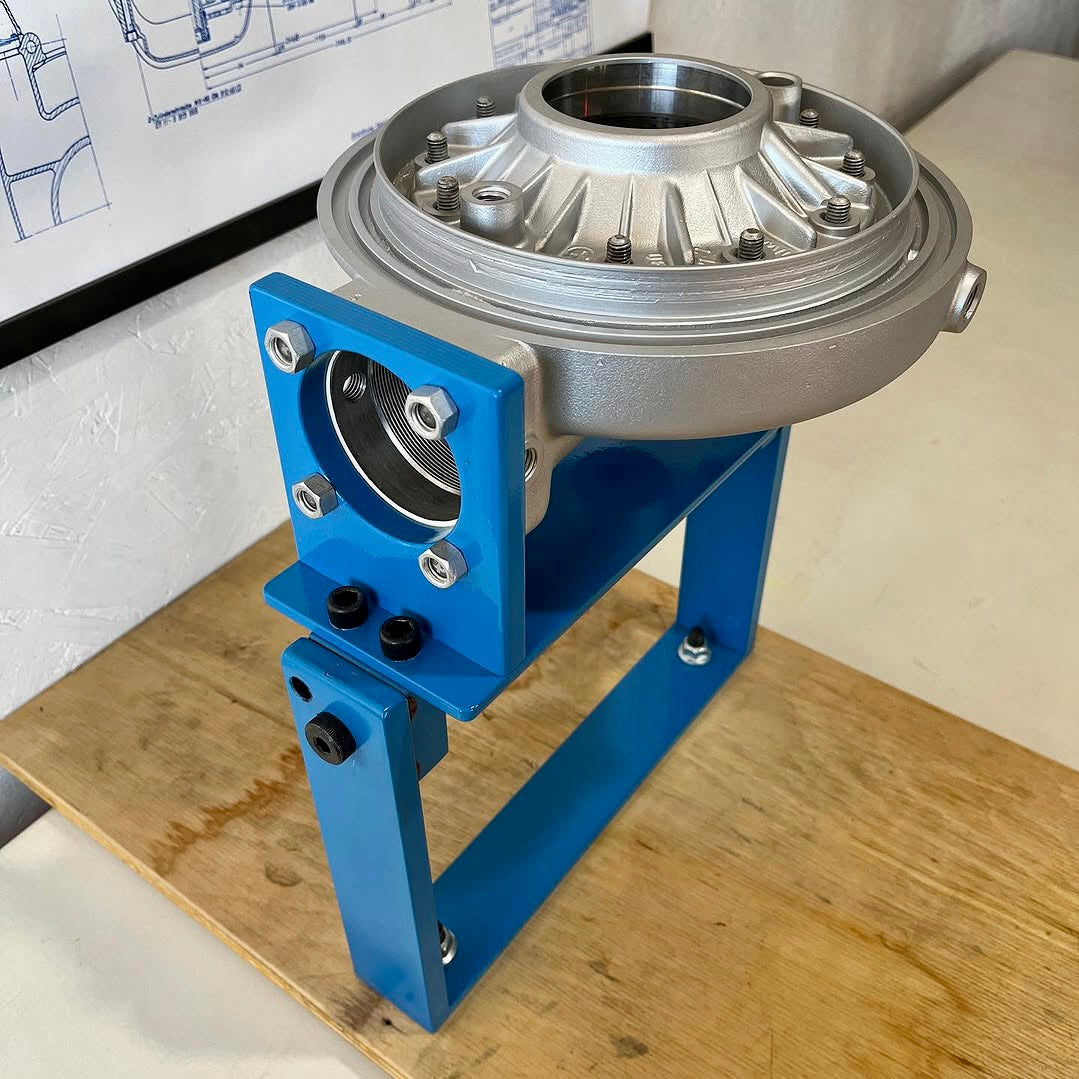

Images showing the final drive stand and hardware are for demonstration purposes only! This is a Digital File Bundle!
